Garmin GRS 77 AHRS, P/N 011-00868-10, with Rack and Top Bracket — PY-0022

$1,390.35

Only 1 left in stock

SKU: PY-0022-011-00868-10-42015570-SET Category:

Garmin GRS 77 AHRS with Rack and Top Bracket — P/N 011-00868-10

Used Garmin GRS 77 AHRS with cosmetic wear and corrosion on the bracket hardware. It has not been bench tested.

The GRS 77 supplies attitude and heading reference data to a compatible Garmin display system. This is the AHRS LRU used in the G500/G600 architecture with supporting air-data and magnetometer equipment.

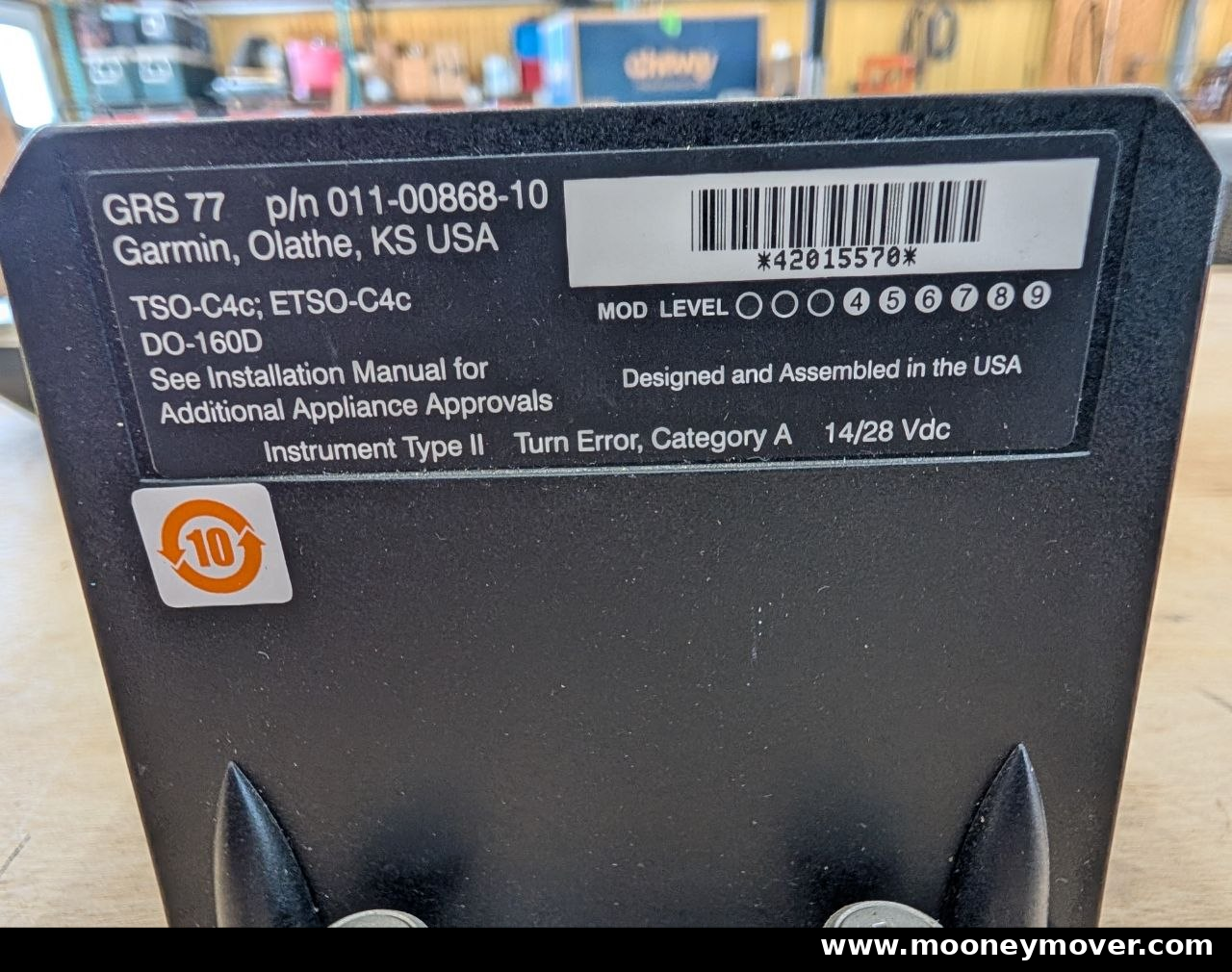

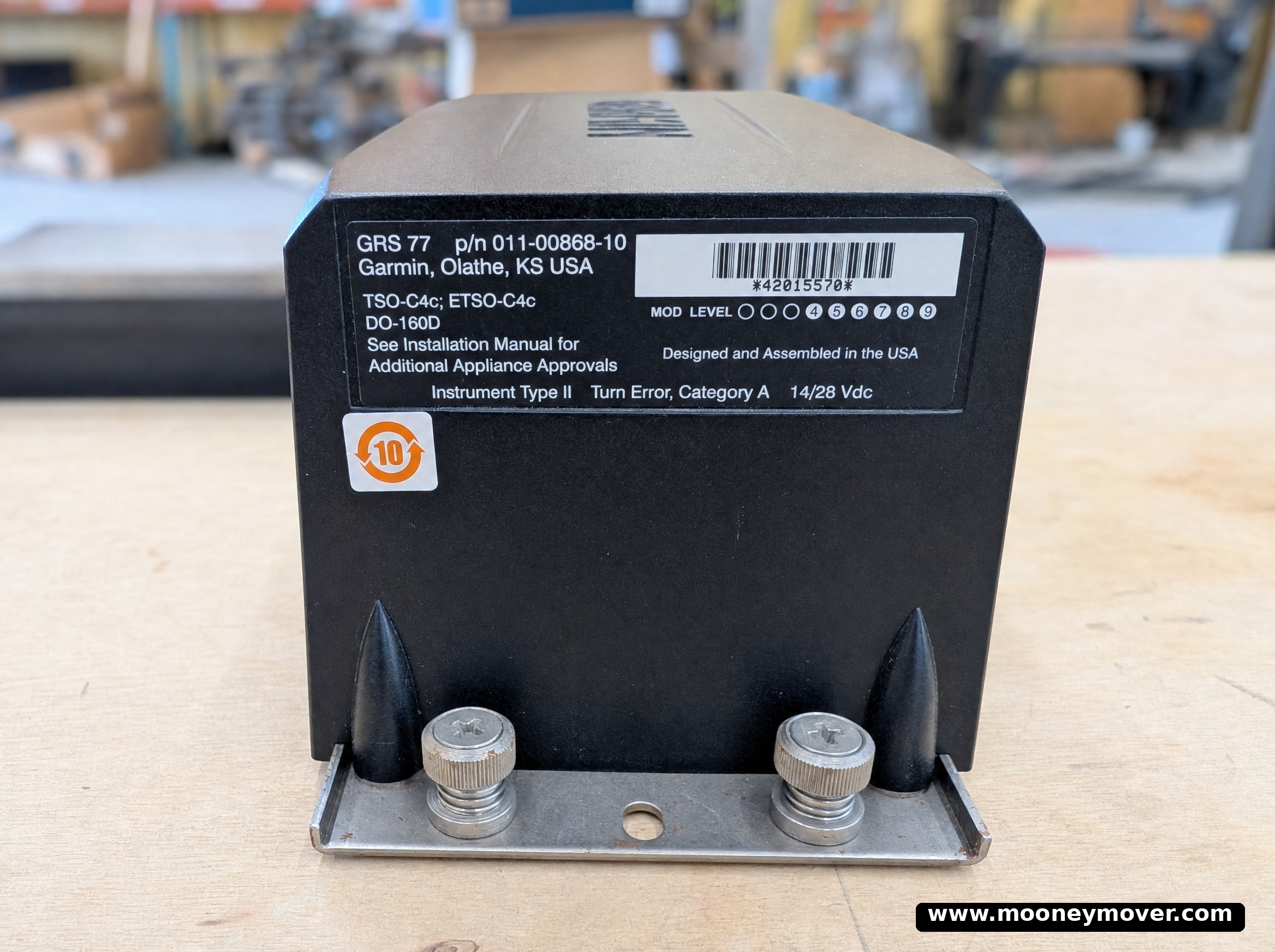

  • GRS 77: P/N 011-00868-10 · S/N 42015570

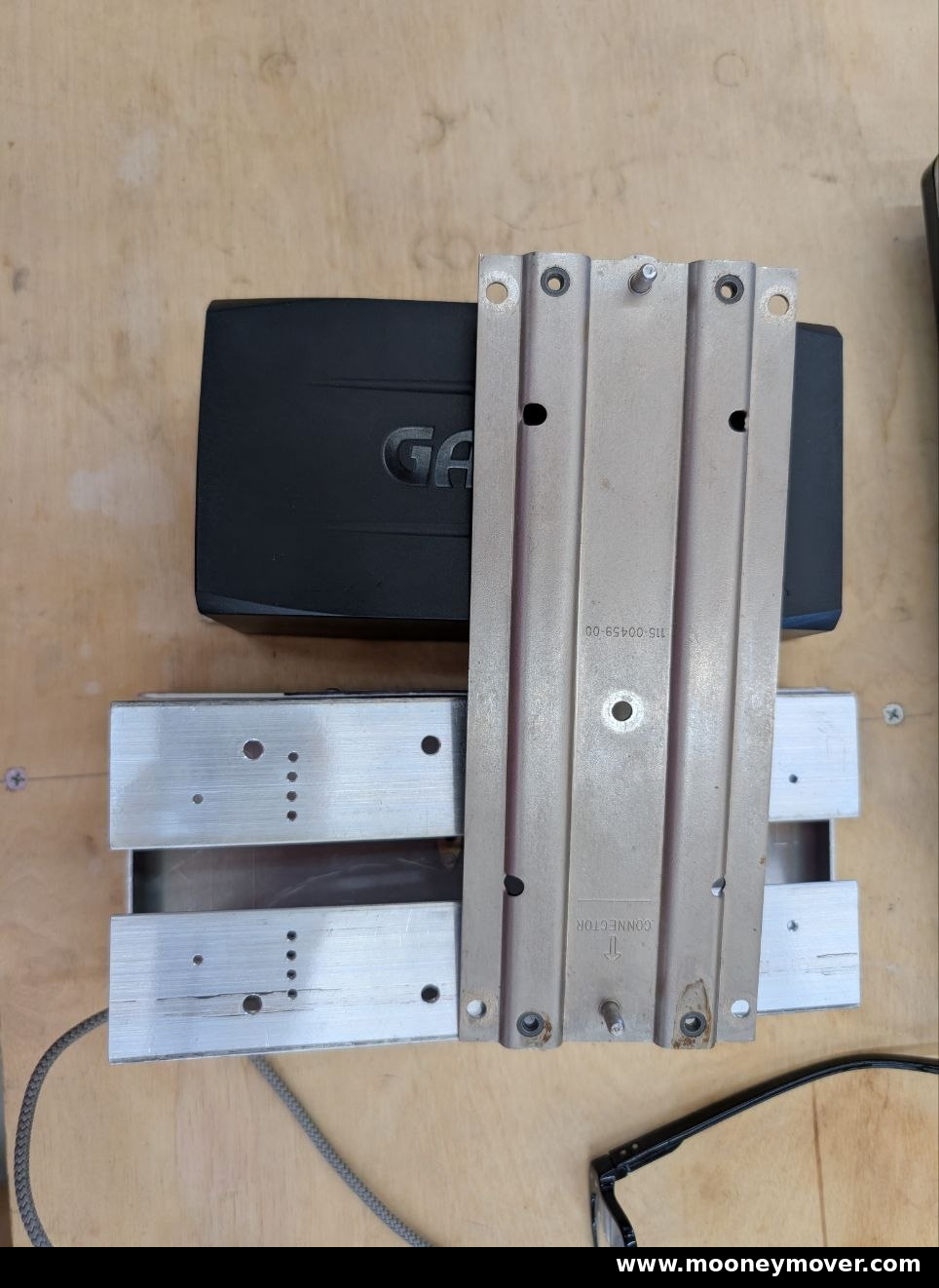

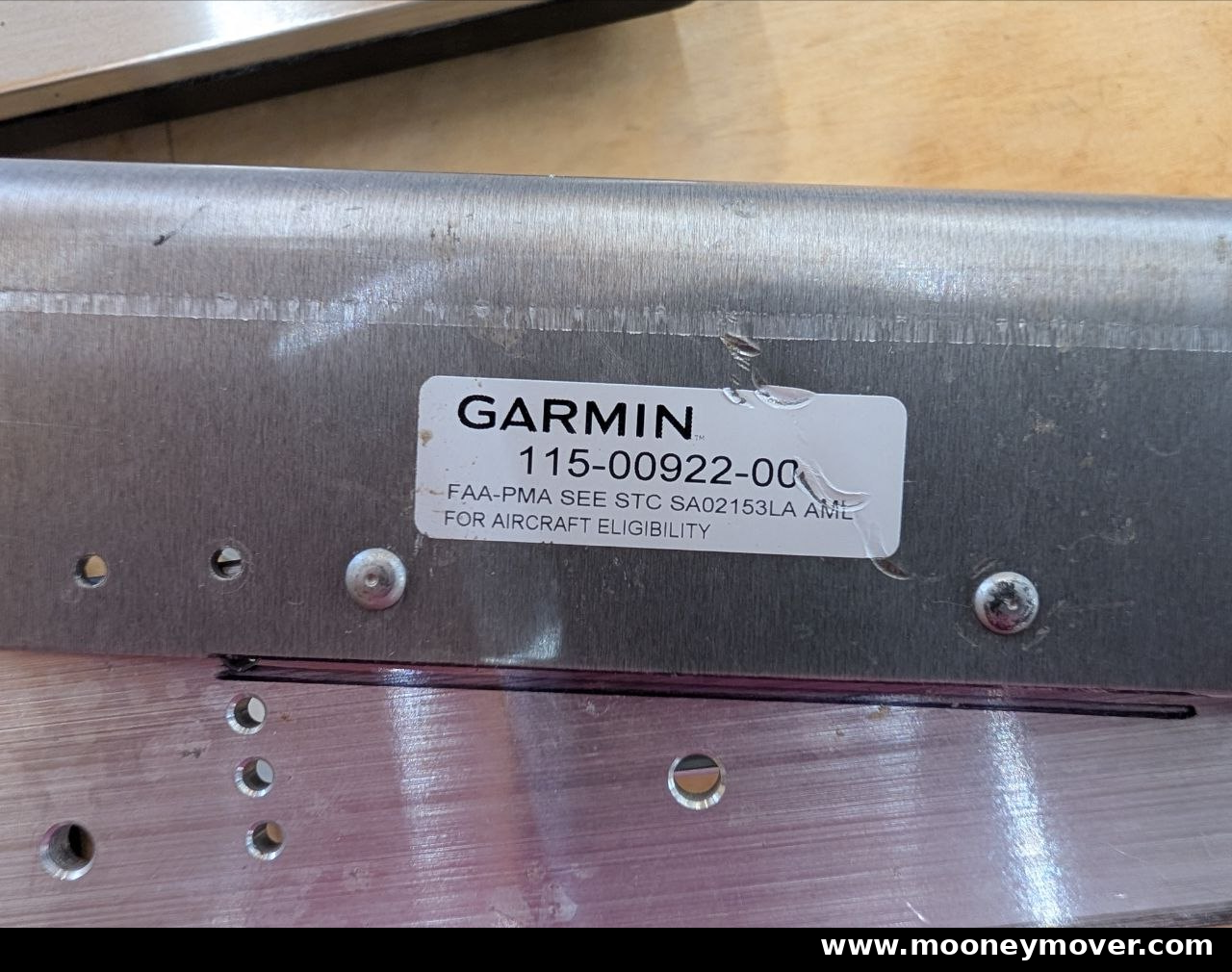

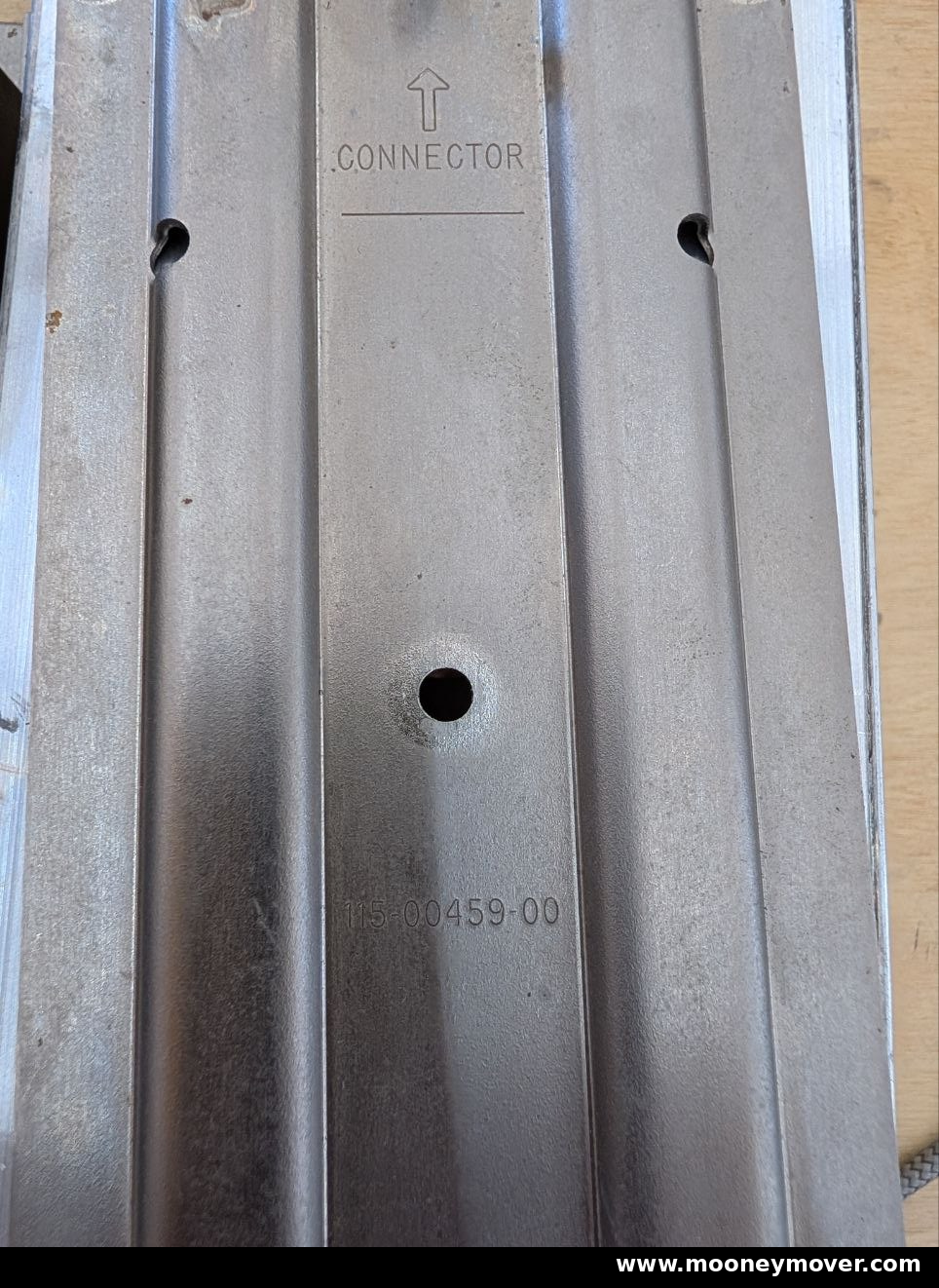

  • Includes: Installation rack P/N 115-00459-00 and Universal Mount top bracket P/N 115-00922-00; no angle brackets, mating connector, or harness

Please confirm P/N 011-00868-10 and the included mounting pieces are correct for your installation.

Weight 6 lbs
Dimensions 12 × 12 × 10 in
